螺紋刀具
確保安全的螺紋加工

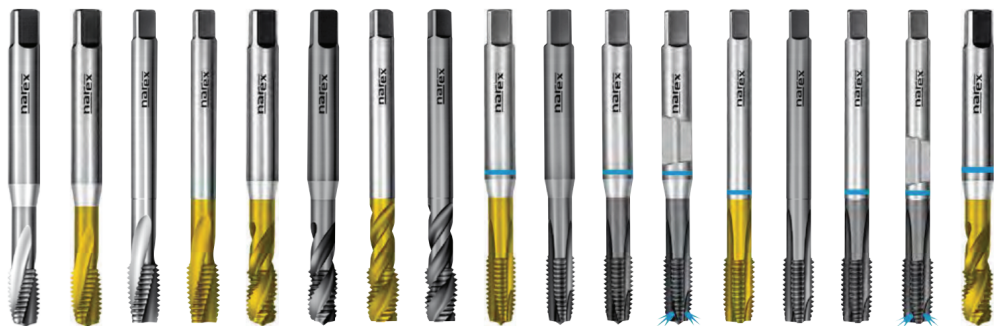

產品范圍包括：整體硬質合金和高速鋼高性能絲錐，并提供相關推薦應用參數
同時包括擠壓成型絲錐以及螺紋銑刀等產品
|
機用絲錐 |
擠壓絲錐 |
||||||
|
d1 |
p |
l1 |
l2 |
l2R40° |
d2 |
a |
Z/ZR40° |
|
M3 |
0.5 |
56 |
9 |
5 |
2.2 |
- |
3/3 |
|
M3.5 |
0.6 |
56 |
11 |
6 |
2.5 |
2.1 |
3/3 |
|
M4 |
0.7 |
63 |
12 |
7 |
2.8 |
2.1 |
3/3 |
|
M4.5 |
0.75 |
70 |
13 |
8 |
3.5 |
2.7 |
3/3 |
|
M5 |
0.8 |
70 |
13 |
8 |
3.5 |
2.7 |
3/3 |
|
M6 |
1 |
80 |
15 |
10 |
4.5 |
3.4 |
3/3 |
|
M7 |
1 |
80 |
15 |
10 |
5.5 |
4.3 |
3/3 |
|
M8 |
1.25 |
90 |
18 |
13 |
6 |
4.9 |
3/3 |
|
M9 |
1.25 |
90 |
18 |
13 |
7 |
5.5 |
3/3 |
|
M10 |
1.5 |
100 |
20 |
15 |
7 |
5.5 |
3/3 |
|
M11 |
1.5 |
100 |
20 |
15 |
8 |
6.2 |
3/3 |
|
M12 |
1.75 |
110 |
23 |
18 |
9 |
7 |
3/3 |
|
M14 |
2 |
110 |
25 |
20 |
11 |
9 |
3/4 |
|
M16 |
2 |
110 |
25 |
20 |
12 |
9 |
3/4 |
|
M18 |
2.5 |
125 |
30 |
25 |
14 |
11 |
3/4 |
|
M20 |
2.5 |
140 |
30 |
25 |
16 |
12 |
3/4 |
|
M22 |
2.5 |
140 |
30 |
25 |
18 |
14.5 |
3/4 |
|
M24 |
3 |
160 |
36 |
30 |
18 |
14.5 |
4/4 |
|
M27 |
3 |
160 |
36 |
30 |
20 |
16 |
4/4 |
|
M30 |
3.5 |
180 |
40 |
35 |
22 |
18 |
4/5 |
|
M33 |
3.5 |
180 |
42 |
35 |
25 |
20 |
4/5 |
|
M36 |
4 |
200 |
50 |
40 |
28 |
22 |
4/5 |
